Deep Bed Air Scrubber (DBS)

The RECO Deep Bed Scrubber (DBS) is designed to absorb soluble gases from the airstream and then transfer the pollutants to the liquid phase to neutralize or destroy them. Deep Bed Scrubbers are used in areas where there are high contaminant gas levels and provide more effective protection against environmentally induced corrosions in hostile environments. Each odor control air scrubber can deliver G1 into the space it is protecting according to the environmental standard definition set by the instrument Society of America (ISA).

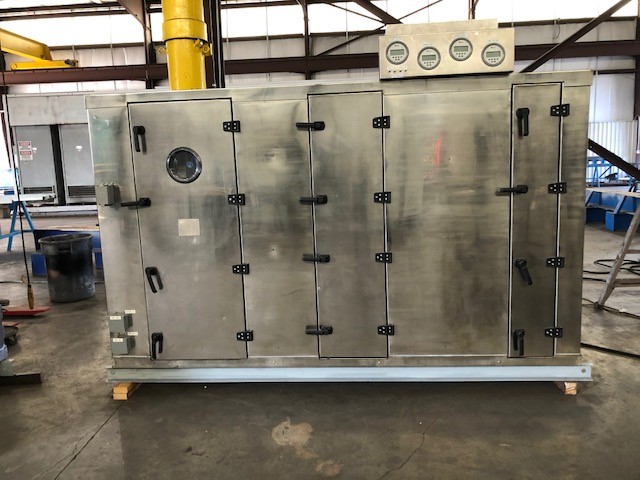

Deep Bed Scrubber    Odor Control Air Scrubbers

Deep Bed Scrubber Advantages

  • Media Selection: Custom selection of up to 36 inches of different chemisorbant media, depending on the corrosive gases present in the environment.
  • Economical: Design allows for higher airflow rates and higher efficiencies at lower CFM costs.
  • System Compatibility: Designed to sit outside the space to be potted. The deep bed air scrubber delivers clean pressurization air to RECO recirculation systems, side access systems, or HVAC equipment.
  • Local Service: Our global network of experienced representatives provides a comprehensive service program to support each system in the field.

Deep Bed Scrubber Applications & Industries

Deep bed scrubbers can be used for many vapor phase odor control applications including metal finishing, fertilizer production and chemical processing. Some of the typical industries that use deep bed air scrubbers include:

  • Control & Switchgear Rooms
  • Refineries
  • Steel Mills
  • Smelters
  • Chemical Plants
  • Petrochemical Plants

Types of gases removed by our Deep Bed Air Scrubbers:

The deep bed air scrubber is effective at, but not limited to, controlling these contaminant gases:

  • Acetaldehyde
  • Acetic acid
  • Acrylonitrile
  • Ammonia
  • Chlorine
  • Chlorine dioxide
  • Ethylene oxide
  • Hydrogen chloride
  • Hydrogen cyanide
  • Hydrogen sulfide
  • Methyl mercaptan
  • Nitric oxide
  • Nitrogen dioxide
  • Sulfuric acid
  • Sulfur dioxide
  • Diesel fumes
  • Other heavy hydrocarbons

Deep Bed Scrubber Features

RECO’s deep bed air scrubber has standard features along with additional features you can choose from to ensure it’s specific to your needs.

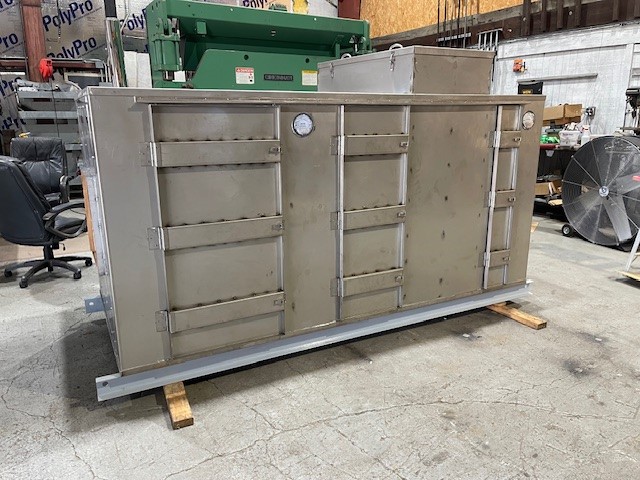

Deep Bed Air Scrubbers

Deep Bed Scrubber Standard Features

  • Construction material: 16 gauge galvanized steel
  • Pre-filter (rated 30% efficient per ASHRAE standard 52-76)
  • Full Charge of media manufactured by RECO
  • RECO I final filter (removes 95% @ 1-micron size particles)
  • TEFC motor and blower with gauges
  • Pre and final filter magnetic gauges
  • Skid Mount

Deep Bed Scrubber Additional Features

  • Construction material: 0.090 aluminum, or 16 gauge 304 or 316 stainless steel
  • Explosion-proof motor
  • Rain louver with bird screen
  • Redundant blower, motor, and backdraft damper
  • Cooling coils
  • Heating coils
  • Epoxy or urethane coating

Deep Bed Scrubber Specifications

Model # Rated CFM Velocity FPM Time in Beds Height (inches) Width Depth Direction of Airflow
RDBS 142 810 100 1.20 54.5 24 110
RDBS 143 1220 100 1.20 54.5 36 110
RDBS 143 1220 100 1.20 54.5 36 110
RDBS 144 1590 100 1.20 54.5 48 110
RDBS 154 2000 100 1.20 67 48 110
RDBS 164 2420 100 1.20 79 48 110
RDBS 165 3040 100 1.20 79 59 110
RDBS 166 3580 100 1.20 79 71 110
RDBS 176 4220 100 1.20 91 71 110
RDBS 168 4900 100 1.20 79 94.5 110



Contact us today for more information about our deep bed air scrubbers!
