Liquid Phase Granular Activated Carbon (GAC) Vessels

Riley Equipment Company rents and sells liquid-phase granular activated carbon vessels, also known as GAC Vessels and liquid scrubbers. Our liquid filtration vessels can be used in a wide range of different applications including the removal of odor from Ethanol for the process of making Hand Sanitizer.

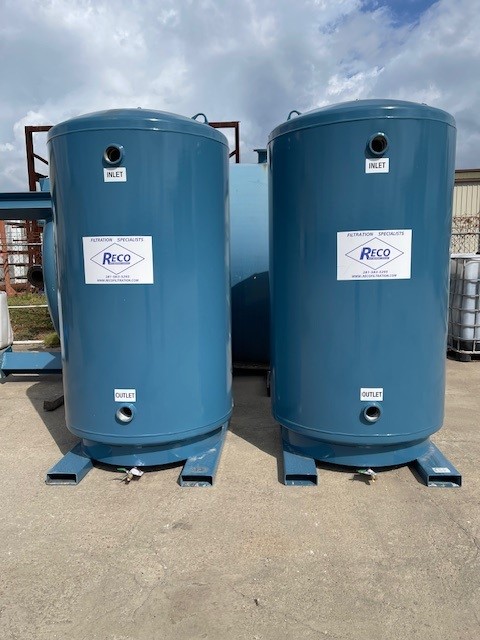

Liquid Phase Carbon Vessels

Liquid GAC Vessel Process

Liquid phase granular activated carbon vessels are commonly used to treat contaminated water by filtering out dissolved organic compounds. The liquid phase granular activated carbon absorbs the contaminants from the water that is being pumped through the vessel.

RECO's RL series for liquid filtration vessels can be designed to easily fit most installation areas. They are coated inside with a long-lasting polyamide epoxy resin and outside with a durable epoxy mastic to handle even the harshest of liquid streams. No matter what you intend to filter out or even if you are not certain of what you need, we are here to do our best to assist you in designing a filtration solution to meet your needs.

Whether you require an Empty Bed Contact Time (EBCT) of 25 minutes at 5.34 Gallons Per Minute (gpm) or 213.73gpm, a 5 minute EBCT at 26.72 or 1068.65gpm, anywhere between, or beyond, we have the liquid phase carbon vessels to match. RECO's RL Series is available for both rent or purchase.

GAC Vessel Applications

RECO's liquid phase granular activated carbon vessels are designed to treat liquid in a wide variety of adsorption applications.

GAC Filteration Applications

  • Stormwater filtration
  • Industrial water filtration
  • Municipal water filtration
  • Wastewater filtration
  • Pool water filtration
  • Drinking water for dissolved organics
  • Removal of dissolved pesticides
  • Taste and odor removal
  • Reverse osmosis
  • Removal of GRO (gas range organics)
  • Removal of DRO (diesel range organics)

Types of Media Filteration

  • Ethanol
  • Naphthalene
  • Phenol
  • Methyl-ethyl-ketone (MEK)
  • Polynuclear-aromatic-hydrocarbons (PNAs)
  • Pesticides
  • Herbicides
  • Atrazine
  • Metalachor
  • Polychloro-biphenyls (PCB’s)
  • Methyl-isobutyl-ketone (MIBK)

Liquid Phase Carbon Vessel Features

  • Steel construction
  • Epoxy internal coating
  • Efficient internal collector array
  • Forklift skid
  • Lifting eyes

There are a wide variety of options for RL Series Filters, contact us today to learn more about our products and services.



RL Series Specifications

Model Number RL-30 RL-36 RL-48 RL-60 RL-72 RL-96 RL-120
Overall Height 5’11” 7’2” 8’6” 8’11” 9’11” 10’9” 15’10”
Diameter 30” 36” 48” 60” 72” 96” 120”
Process Connection 2” FNPT 2” FNTP 3” FNTP 3” FNTP 4” FNTP 6” FLNG 8” FLNG
Typical GAC Fill (28#/ft3) 500 lbs 1,000 lbs 2,000 lbs 3,000 lbs 5,000 lbs 10,000 lbs 20,000 lbs
Bed Depth/ Volume 3.4 ft/16.7 ft3 5 ft/33 ft3 5.5 ft/68.7 ft3 5.5 ft/107 ft3 6 ft/168 ft3 7 ft/ 350 ft3 7 ft / 350 ft3
Cross Sectional Bed Area 4.9 ft2 7 ft2 12.5 ft2 19.5 ft2 28 ft2 50 ft2 78 ft2
Available Bed Volume 20 ft3 35 ft3 75 ft3 117 ft3 196 ft3 400 ft3 780 ft3
Internal Piping Materials SCH 40 PVC SCH 40 PVC SCH 40 PVC SCH 40 PVC SCH 40 PVC SCH 40 PVC SCH 40 PVC
Shipping Weight (Empty) 600 lbs 800 lbs 1,500 lbs 3,525 lbs 7,490 lbs 13,800 lbs 27,250 lbs
Operational Weight 1,700 lbs 3,300 lbs 6,800 lbs 10,700 lbs 17,900 lbs 31,200 lbs 68,400 lbs
Internal Coating Polyamide
Epoxy Resin
Polyamide
Epoxy Resin
Polyamide
Epoxy Resin
Polyamide
Epoxy Resin
Polyamide
Epoxy Resin
Polyamide
Epoxy Resin
Polyamide
Epoxy Resin
External Coating Epoxy Mastic Epoxy Mastic Epoxy Mastic Epoxy Mastic Epoxy Mastic Epoxy Mastic Epoxy Mastic
Maximum Pressure 75 PSIG 75 PSIG 75 PSIG 75 PSIG 75 PSIG 75 PSIG 75 PSIG
Maximum Temperature 140⁰F 140⁰F 140⁰F 140⁰F 140⁰F 140⁰F 140⁰F
Maximum Vacuum 28” Hg 28” Hg 28” Hg 28” Hg 28” Hg 28” Hg 28” Hg
